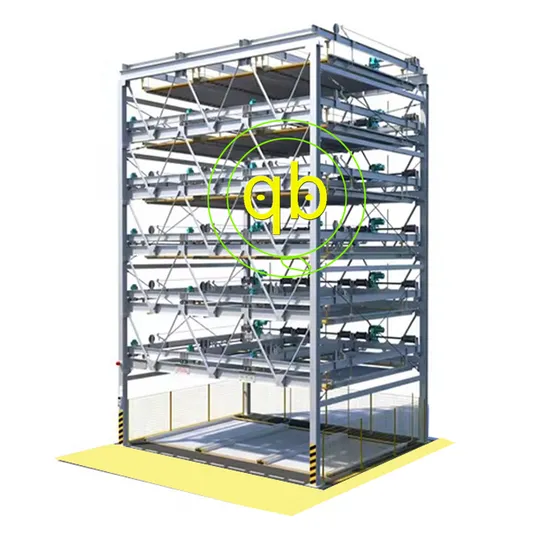

7 Seven Tier Puzzle Parking System Vertical Horizontal Storage Lift Equipment

7 Seven Tier Puzzle Parking System Vertical Horizontal Storage Lift Equipment

Package Size480.00cm * 240.00cm * 100.00cm Package Gross Weight1000.000kg We are leading mechanical parking system in th
SHARE
Send inquiry

Description

Basic Info.
Color Customized
Installation Type Multi-Level
Material Steel
Operation Mode Automatic
Power Source Electric
Safety Features Anti-slip Surface, Emergency Stop Button, Overload Protection, Safety Sensors
Suitable for Commercial Use, Public Parking, Residential Use
Warranty 12 Months
Certification CE, ISO
Control PLC
Lifting Capacity 2000kg
Elevator Motor Powe 3.7kw
Lifting Speed 5.25m/Min
Horizontal Motor Power/Speed 0.2kw/7.28m/Min
Rise & Drop Time 90s
Driving Mode Motor and Chain or Wire Rope
The Vehicle Inlet and Outlet Down
Working Mode Push The Button /IC Card
Design Four Post
Falling Prevention Device Pull-Type
Transport Package Export Standard
Trademark qb
Origin Qingdao China
HS Code 84289020
Production Capacity 5000 Parking Space/Year
Packaging & Delivery
Package Size480.00cm * 240.00cm * 100.00cm Package Gross Weight1000.000kg
Product Description
We are leading mechanical parking system in the safety!!!
Puzzle Parking System
Operating Principle
The equipment is adopted speed reducer to drive by chains or wires, which top board only lift and fall and the bottom of board only move horizontally. Reserving a parking space is at the bottom, it moves to left or right as loading board move horizontally, to top car can fall to the bottom.
Features
  1. PLC control, easy operation, convenient rise and drop, (button, PLC, IC card is optional on operation)
  2. Move stably, lift and drop safely.
  3. Loading boards are whole, they are formed by cold rolling.
  4. Anti-dropping device, safe and reliable
  5. Cars size and parking place are controlled by photoelectric sensor.
  6. Beams with grooves can collect water and oil over the car drop.
Parameter

7 Seven Tier Puzzle Parking System Vertical Horizontal Storage Lift Equipment

7 Seven Tier Puzzle Parking System Vertical Horizontal Storage Lift Equipment

7 Seven Tier Puzzle Parking System Vertical Horizontal Storage Lift Equipment

7 Seven Tier Puzzle Parking System Vertical Horizontal Storage Lift Equipment

7 Seven Tier Puzzle Parking System Vertical Horizontal Storage Lift Equipment

FAQ

Q: Are you a factory or trading company?

A: Qingdao Lifter Machinery Co., Ltd is a factory with more than 30 years' manufacturing and design experience.

Q: Could the parking system be customized?

A: Yes. The parking system can be customized accordingly to your site and requirements.

Q: Could the parking system be used for parking SUV?

A: Yes.The system can be customized to fit for SUV. Please contact us for more details.

Q: Could the system be used outdoor?

A: Yes. The structure surface is galvanized or painted, which is water-proof, and extra covers could be installed to prevent from rain, snow and heavy wind.

Q: What's the voltage requirement?

A: The voltage can be customzied accordingly to your local voltage.

Car size(L X W X H) 5200MMX1900MMX1550MM
5000MMX1850MMX1550MM
4700MMX1800MMX1450MM
Loading capacity 2000kgs
Elevator Motor Power/Speed 2.2kw/5.25m/min (2-3 level)
3.7kw/5/25m/min (4-7 level)
Horizontal Motor Power/Speed 0.2kw/7.28m/min
Rise & Drop Time 90s
Driving Mode Motor and Chain or Wire Rope
Operation Code PLC,Button,IC card
Safeguard Preventing Falls,Photoelectric Sensor,Restricted Place
